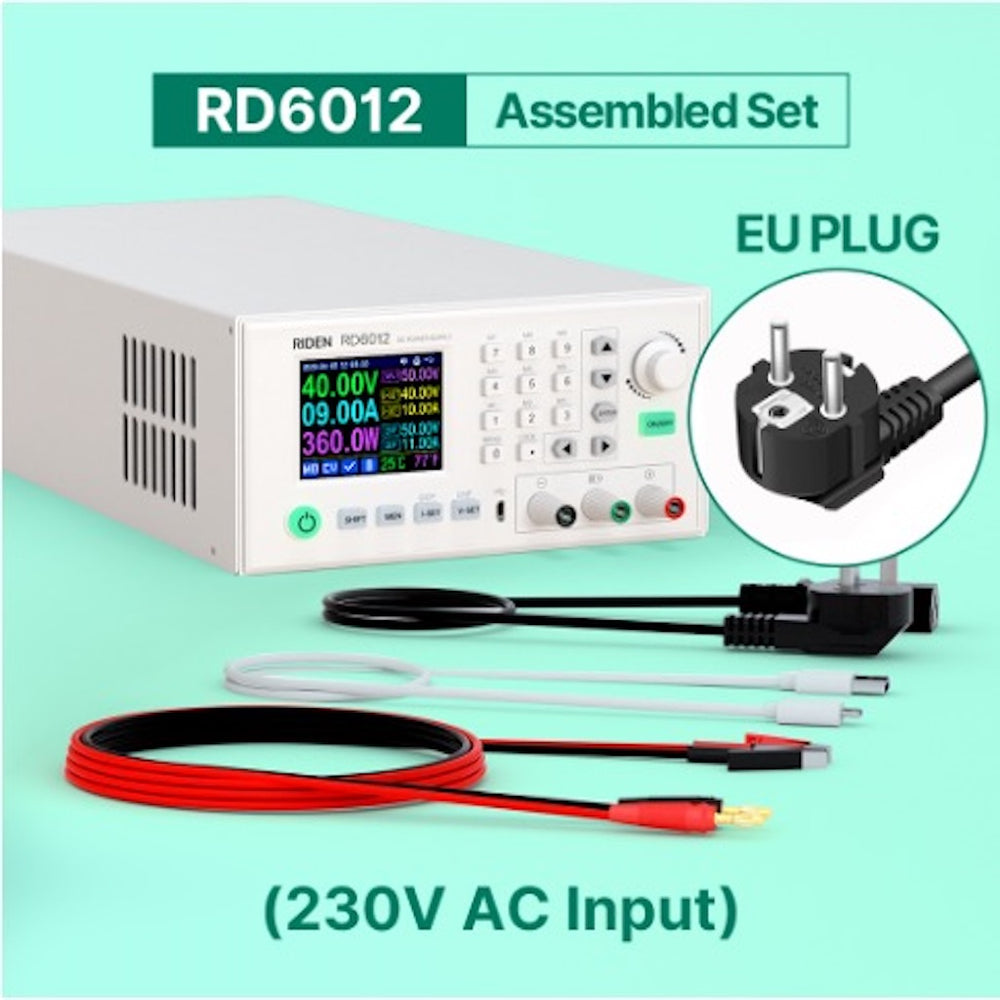

Model: RD6012full set assembled
includes: RD6012+S800 case+800W PSU(assembled),X25A cable,input AC power cord, backup fuse,temperature sensor, micro USB cable;
Input voltage range: 100-120V/200-240V AC
Output voltage range: 0-60.00V
Output current range: 0-12.00A
Output power range: 0-720W
Input voltage measurement resolution: 0.01V
Output voltagesetting measurement resolution: 0.01V
Output current setting measurement resolution: 0.01A
Battery voltage measurement resolution: 0.01V
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage accuracybetween setting and measurement: ±(0.3%+3 digits)
Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)
Battery voltage measurement accuracy: ±(0.5%+3 digits)
Automatic cut off current valuewhen charging:100mA
Output ripple typical:250mV VPP@6A
Working temperature range: -10℃~40℃
External sensor Temperature detection range:-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:±3℃/±6℉
Constant voltage moderesponse time: 2ms（0.1A-5A Load）
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2％
Buck working mode: Voltage drop >1V and >10%
Over temperature protection: System temperature>80℃
Screen brightness setting: 0-5(6 level in total)
Screen: 2.4inch color HD display
Product dimension: 173*92*336mm
Cooling fan start condition：Output current>8AorSystem temperature>45℃
Cooling fan shut down condition：Output current<7.9Aand System temperature<45℃
