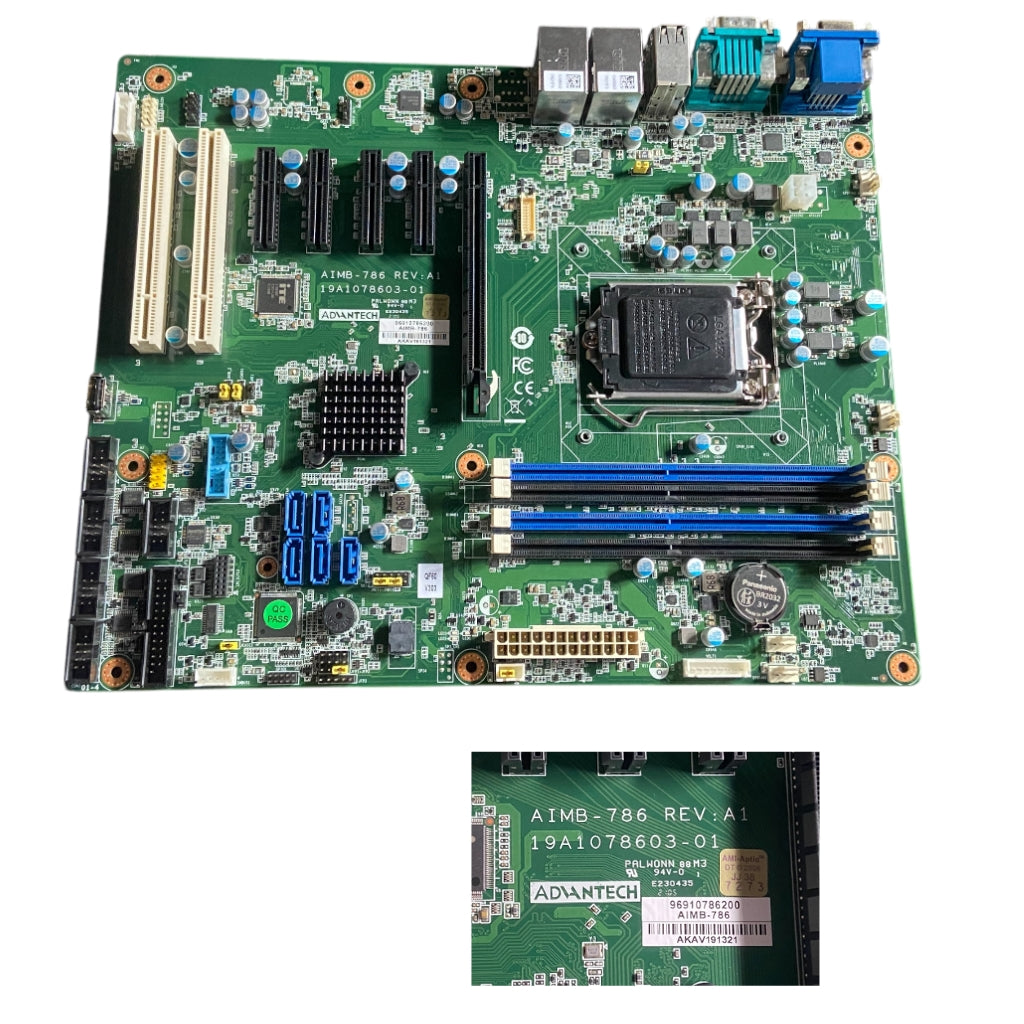

The Advantech AIMB-786 is an industrial ATX motherboard for compatible Intel 8th- and 9th-generation processor systems. Built around the Intel Q370 chipset, it combines DDR4 memory support, dual Gigabit Ethernet and multiple expansion slots for industrial computing, equipment integration and system upgrades.
VGA, DVI-D and DisplayPort outputs support multi-display setups with a suitable processor. PCI Express and legacy PCI slots accommodate compatible expansion cards, while SATA storage connections and serial interfaces provide connectivity for drives and industrial peripherals.
Core specifications
| Specification |
Details |
| Brand |
Advantech |
| Model |
AIMB-786 |
| Form factor |
ATX |
| Dimensions |
304.8 × 244 mm |
| Chipset |
Intel Q370 |
| CPU socket |
LGA1151 |
| Processor support |
Compatible 8th/9th-generation Intel Core i7, i5, i3, Pentium and Celeron processors |
| Processor TDP |
Up to 65 W |
| RAM type |
DDR4, non-ECC, unbuffered |
| Memory speed |
2400/2666 MHz, depending on CPU and configuration |
| Memory slots |
4 × 288-pin DIMM; dual-channel |
| Maximum memory |
Up to 128 GB, subject to configuration compatibility |
| Storage |
5 × SATA III |
| Software RAID |
RAID 0, 1, 5 and 10 |
| Expansion slots |
1 × PCIe x16 Gen 3, 4 × PCIe x4 Gen 3, 2 × PCI |
| Networking |
Dual 10/100/1000 Mbps Ethernet |
| Operating temperature |
0–60°C, with appropriate cooling |

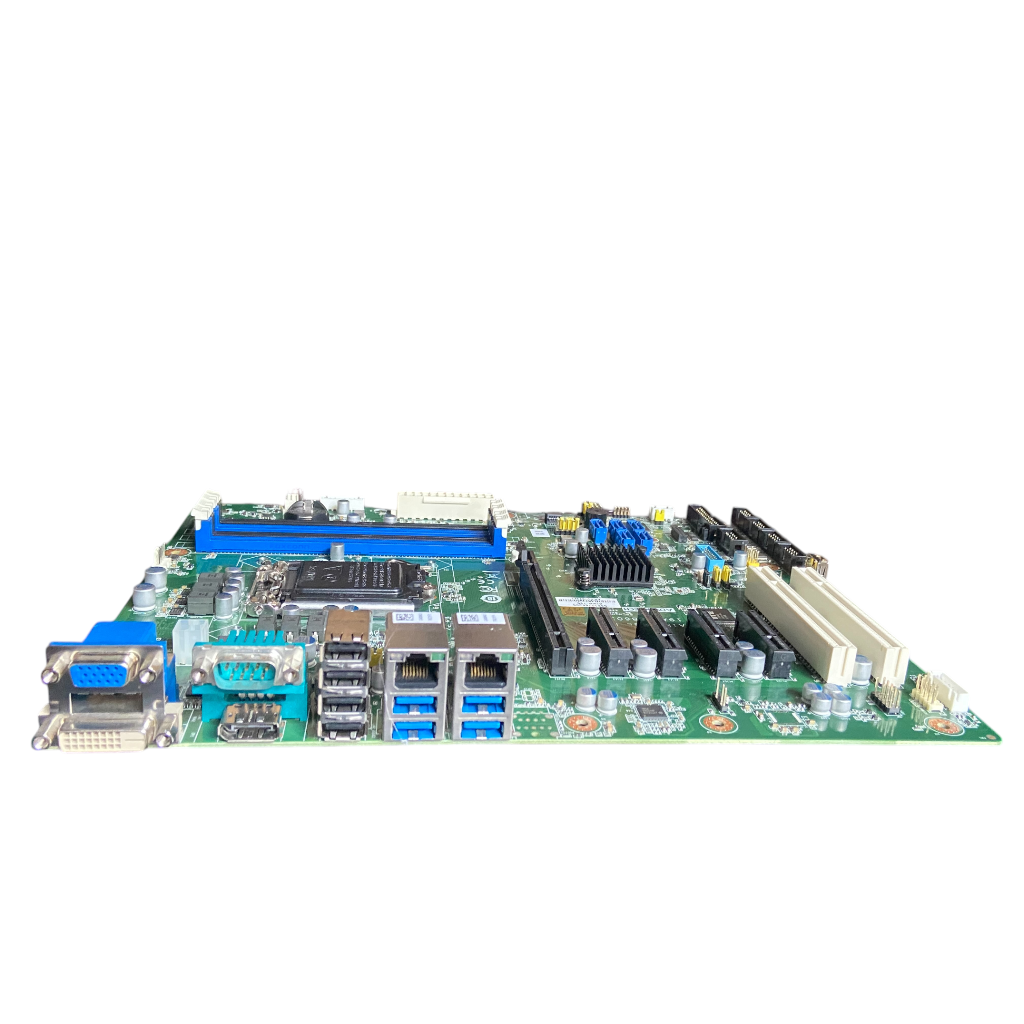

Rear ports
| Port |
Quantity / details |
| DisplayPort |
1 |
| DVI-D |
1 |
| VGA |
1 |
| RJ45 Ethernet |
2 |
| USB 3.1 Gen 2 |
2; up to 10 Gbps |
| USB 3.1 Gen 1 |
2; up to 5 Gbps |
| USB 2.0 |
4 |
| RS-232 serial |
1 × DB9 |
| Audio |
1 × microphone-in and 1 × line-out |
Internal connections
-
USB headers supporting 2 additional USB 3.1 Gen 1 ports and 2 USB 2.0 ports.
-
1 internal USB 2.0 Type-A port.
-
5 serial headers: 4 × RS-232 and 1 × RS-232/422/485.
-
5 SATA III storage connectors.
-
8-bit GPIO and an LPC connector.
Internal headers require suitable cables or brackets to provide externally accessible ports.
Compatibility information
BIOS V2.xx supports 8th- and 9th-generation processors; BIOS V1.xx supports only 8th-generation processors. Confirm the exact CPU against the supported processor list before installation.
Onboard display outputs require a processor with integrated graphics. DDR3 and DDR4 memory are not interchangeable.
